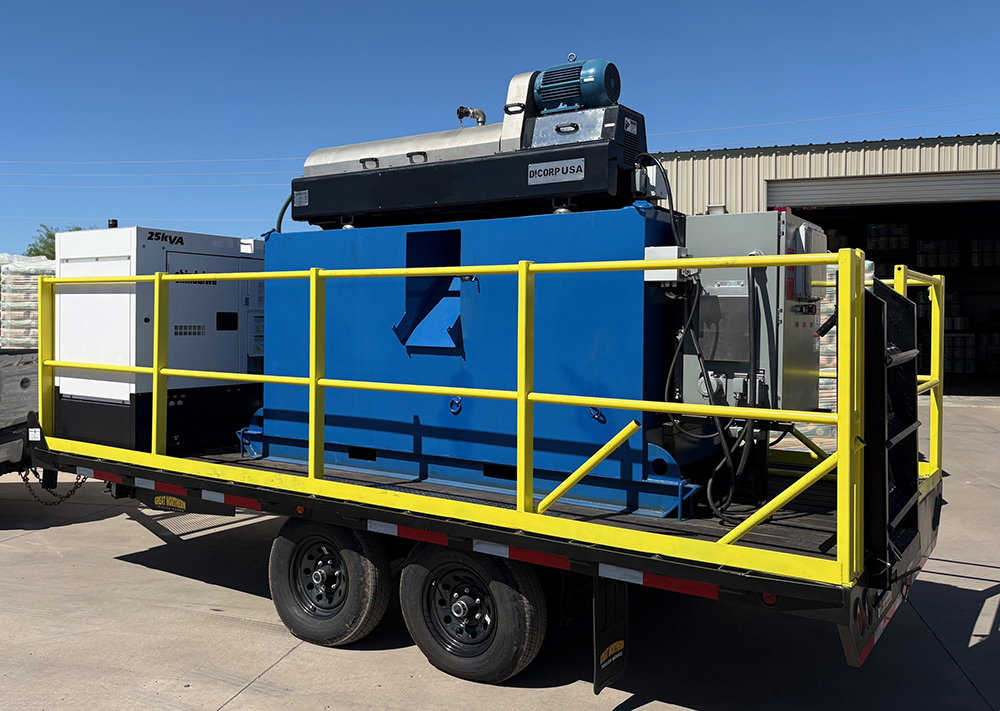

Earth Pro Total Fluid Recycler
The Earth Pro Total Fluid Recycler is loaded with features that until now were the domain of large water treatment and drilling operations. A mobile centrifuge with remote connection and recording abilities that allow for less downtime, more accurate accountability for maintenance, and reporting that shows your customer how much water you save in your drilling operation. No more guessing, this machine records every drop of liquid it processes.
With continuous flow treatment rates of up to 42 Gal/Min, this machine is designed for P size coring operations with easy single-touch adjustments for H and N size flow rates. The Earth Pro Total Fluid Recycler features a touchscreen interface and a 25 kVA Gen Set for reliable power.
The generator can handle other electrical loads around the site with 1-phase and 3-phase power available in 480v, 120V and 240V.
Earth Pro Total Fluid Recycler Product Sheet:
English | Español
| Part | Specification |
|---|---|
| Process Liquid | Min. 0°C (32°F) - Max. 100°C (212°F) |
| Feed Capacity | 1-10 M3/h (3-44 GPM) |
| Empty Centrifuge Weight | 900 kg (1984lbs) |
| With Tank | 3200lbs @ 115”Wx48”Dx80”H |
| Sound Level | 90 dBA at 1m |
| Cake Dryness | 20-40% (depending on application) |
| Maximum Main Speed | 4000 rpm |
| Maximum G-Force | 3600 G |
| Bowl Diameter | 254 mm (10”) |
| Bearing Lubrication | Manually Applied Grease |
| Flow Type | Axial (Radial available depending on application) |
| Main Motor | 7.5Kw (10hp) WEG foot mount |
| Back Drive Motor | 4Kw (5hp) WEG foot mount |
| Power Supply (as configured) | 480V/60Hz |
| Safety Controls | (1) speed sensor on back drive coupling (1) speed sensor on bowl (1) Lid/cover open sensor |
| Genset | 20kW (25kVA), 3 PH & 1PH output |
| Engine & Output | Isuzu Tier 4 33hp @ 1800rpm |
| Fuel Capacity | 51.5 Gal (195L); 4.5L/h @ ¾ load |
| Sound Level, full load @ 23ft | 62dB(A) |
| Dry Weight | 875kg (1929lbs) |
| With Skid | 3200lbs @ 115”Wx34”Dx67”H |
| Tank Dirty Side Volume | 480gal 1800L |
| Tank Clean Side Volume | 460gal 1700L |
| Transfer Pump | 2 X Tsurumi HS2.4S, 2”, 1/2 HP with camlock hoses |
