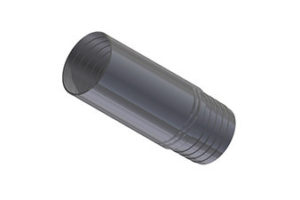

Rod-to-Rod Adapter Subs
Rod to Rod Adaptor Subs are available in all sizes to adapt your drill string thread to another drill rod thread. The inside diameter of these subs is based on the standard diameter of the smaller of the Rod sizes. The outside diameter of these subs is based on the standard diameter of the larger of the Rods. These subs are machined from high quality alloy steel and depending on the size and thread configuration, may be heat treated and/or identified with special geometries.
| Part Number | Description |
|---|---|
| 102573 | BWL Rod Box to BD Rod Pin |
| Part Number | Description |
|---|---|
| 100834 | NWL Rod Box to ND Rod Pin |
| 100835 | ND Rod Box to NWL Rod Pin |
| 106048 | NS Rod Box to NWL Rod Pin |
| 106010 | NS Rod Box to ND Rod Pin |
| Part Number | Description |
|---|---|
| 102615 | HWL Rod Box to HD Rod Pin |
| 102616 | HD Rod Box to HWL Rod Pin |
| Part Number | Description |
|---|---|
| 102248 | PD Rod (HWT Casing) Box to PW Casing Pin |
| 100678 | PD Rod (HWT Casing) Box to PWT Casing (SD Rod) Pin |
| 102635 | PW Casing Box to PWT Casing (SD Rod) Pin |
| 102636 | PWT Casing (SD Rod) Box to PW Casing Pin |
