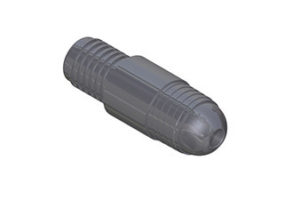

Hoisting Plug Adapter Subs
Hoisting Plug Adaptor Subs are available in all sizes to adapt your drill string to the Hoisting Plug. These subs have a bullnose pin profile and the threads have been machined to allow for full thread make-up by hand. These subs are machined from high quality alloy steel and depending on the size and thread configuration, may be heat treated and/or identified with special geometries.
| Part Number | Description | Hoisting Weight |
|---|---|---|
| 100669 | AW Rod Pin to BWL Rod Pin | 5,000 LB |
| 100671 | NW Rod Pin to BWL Rod Pin | 10,000/30,000 LB |
| 102571 | NW Rod Pin to BWL Bullnose | 10,000/30,000 LB |
| Part Number | Description | Hoisting Weight |
|---|---|---|
| 100667 | AW Rod Pin to NWL Rod Pin | 5,000 LB |
| 100852 | AW Rod Pin to ND Rod Pin | 5,000 LB |
| 100595 | NW Rod Pin to NWL Rod Pin | 10,000/30,000 LB |
| 102589 | NW Rod Pin to ND Rod Pin | 10,000/30,000 LB |
| 102590 | NW Rod Pin to NWL Bullnose | 10,000/30,000 LB |
| 102591 | NW Rod Pin to ND Bullnose | 10,000/30,000 LB |
| 106002 | AW Rod Pin to NS Rod Pin | 10,000/30,000 LB |
| 106130 | NW Rod Pin to NS Pin | 10,000/30,000 LB |
| 106138 | NW Rod Pin to NS Bullnose | 10,000/30,000 LB |
| Part Number | Description | Hoisting Weight |
|---|---|---|
| 100596 | NW Rod Pin to HWL Rod Pin | 10,000/30,000 LB |
| 102612 | NW Rod Pin to HD Rod Pin | 10,000/30,000 LB |
| 102613 | NW Rod Pin to HWL Bullnose | 10,000/30,000 LB |
| 102614 | NW Rod Pin to HD Bullnose | 10,000/30,000 LB |
| Part Number | Description | Hoisting Weight |
|---|---|---|
| 102633 | NW Rod Pin to PD Rod (HWT Casing) Pin | 10,000/30,000 LB |
| 102634 | NW Rod Pin to PD Rod (HWT Casing) Bullnose | 10,000/30,000 LB |
