RetroLOCK™ Overshot Assemblies & Options

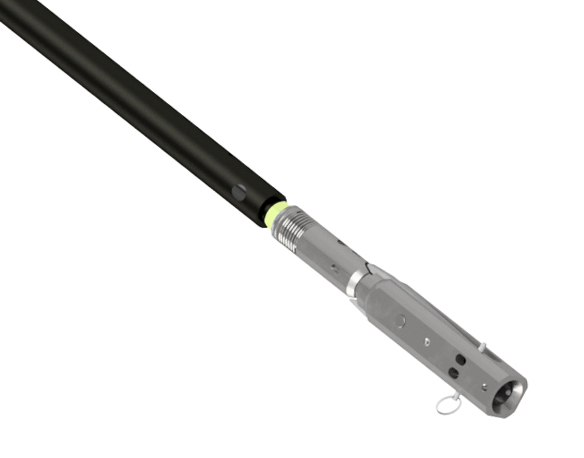

The EdgeLOCK overshot assembly features a unique edge lock mechanism that automatically locks the overshot lifting dogs in place, Jentech also carries the RetroLOCK series, a trusted, traditional overshot locking system. The RetroLOCK overshot assembly is a simple, self-locking, and compatible drilling product designed to retrieve the inner tube assembly efficiently. If you are looking for a reliable traditional locking system from an independent tooling supplier, we encourage you to try RetroLOCK.
RetroLOCK Overshot Assemblies product sheets
Surface
Click here to download the full exploded view of RetroLOCK Assembly N.
| Part Number | Description | Item # | Qty |
|---|---|---|---|
| 105200 | RetroLOCK Overshot Assembly N | – | – |
| 100518 | Cable Swivel Eye Bolt | 1 | 1 |
| 100519 | Cable Swivel Collar | 2 | 1 |
| 100520 | Thrust Bearing | 3 | 1 |
| 100521 | Castle Nut | 4 | 1 |
| 100522 | Cotter Pin | 5 | 1 |
| 100461 | Grease Fitting | 6 | 1 |
| 100523 | Cable Swivel Body | 7 | 1 |
| 100524 | Jar Staff | 8 | 1 |
| 100525 | Jar Tube | 9 | 1 |
| 100534 | Locking Sleeve, Slotted | 10 | 1 |
| 100526 | Hex Nut | 11 | 1 |
| 105902 | Nord-Lock Washer | 12 | 1 |
| 105721 | Overshot Head Assembly, RetroLOCK | 13 | 1 |
Click here to download the full exploded view of RetroLOCK Assembly H.
| Part Number | Description | Item # | Qty |
|---|---|---|---|
| 105201 | RetroLOCK Overshot Assembly H | – | – |
| 100518 | Cable Swivel Eye Bolt | 1 | 1 |
| 100519 | Cable Swivel Collar | 2 | 1 |
| 100520 | Thrust Bearing | 3 | 1 |
| 100521 | Castle Nut | 4 | 1 |
| 100522 | Cotter Pin | 5 | 1 |
| 100461 | Grease Fitting | 6 | 1 |
| 100523 | Cable Swivel Body | 7 | 1 |
| 100524 | Jar Staff | 8 | 1 |
| 100525 | Jar Tube | 9 | 1 |
| 100534 | Locking Sleeve, Slotted | 10 | 1 |
| 100526 | Hex Nut | 11 | 1 |
| 105902 | Nord-Lock Washer | 12 | 1 |
| 105722 | Overshot Head Assembly, RetroLOCK | 13 | 1 |
