Hoisting Plug Adaptor Subs

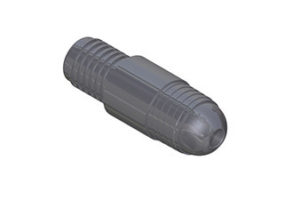

Hoisting-Plug-Adaptor-Sub---webHoisting Plug Adaptor Subs are available in all sizes to adapt your drill string to the Hoisting Plug. These subs have a bullnose pin profile and the threads have been machined to allow for full thread make-up by hand. These subs are machined from high quality alloy steel and depending on the size and thread configuration, may be heat treated and/or identified with special geometries.

Sizes Available

Description   Hoisting Weight
AW Rod Pin to BWL Rod Pin 5,000 LB
NW Rod Pin to BWL Rod Pin 10,000 / 30,000 LB
NW Rod Pin to BWL Bullnose 10,000 / 30,000 LB
AW Rod Pin to NWL Rod Pin 5,000 LB
AW Rod Pin to ND Rod Pin 5,000 LB
NW Rod Pin to NWL Rod Pin 10,000 / 30,000 LB
NW Rod Pin to ND Rod Pin 10,000 / 30,000 LB
NW Rod Pin to NWL Bullnose 10,000 / 30,000 LB
NW Rod Pin to ND Bullnose 10,000 / 30,000 LB
NW Rod Pin to HWL Rod Pin 10,000 / 30,000 LB
NW Rod Pin to HD Rod Pin 10,000 / 30,000 LB
NW Rod Pin to HWL Bullnose 10,000 / 30,000 LB
NW Rod Pin to HD Bullnose 10,000 / 30,000 LB
NW Rod Pin to PD Rod (HWT Casing) Pin 10,000 / 30,000 LB
NW Rod Pin to PD Rod (HWT Casing) Bullnose 10,000 / 30,000 LB
